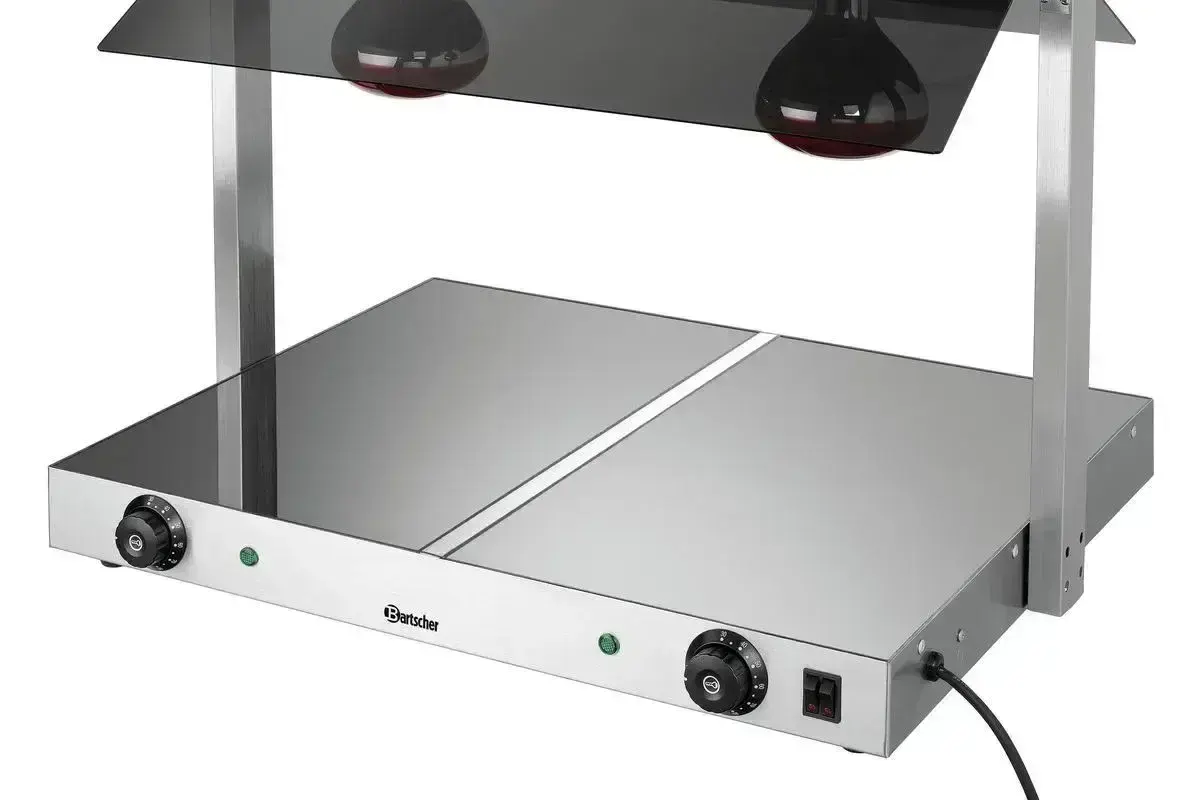

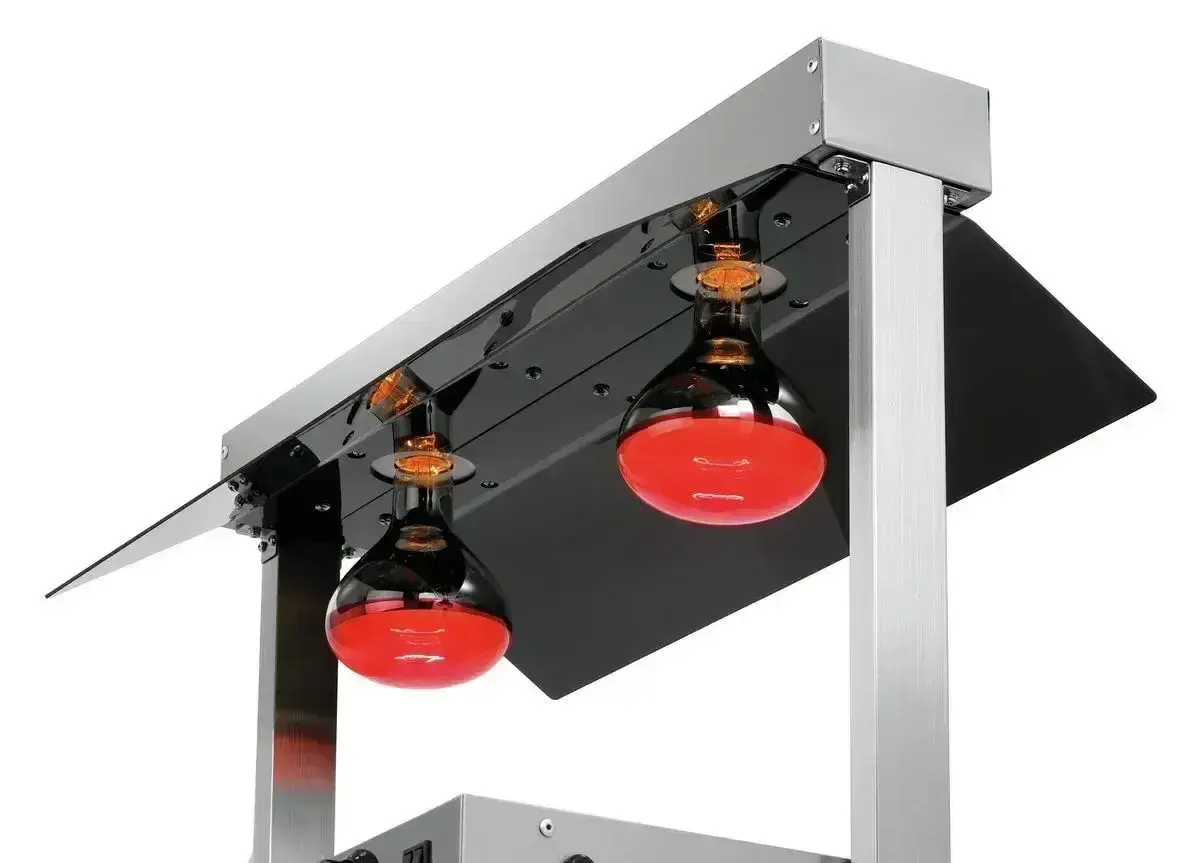

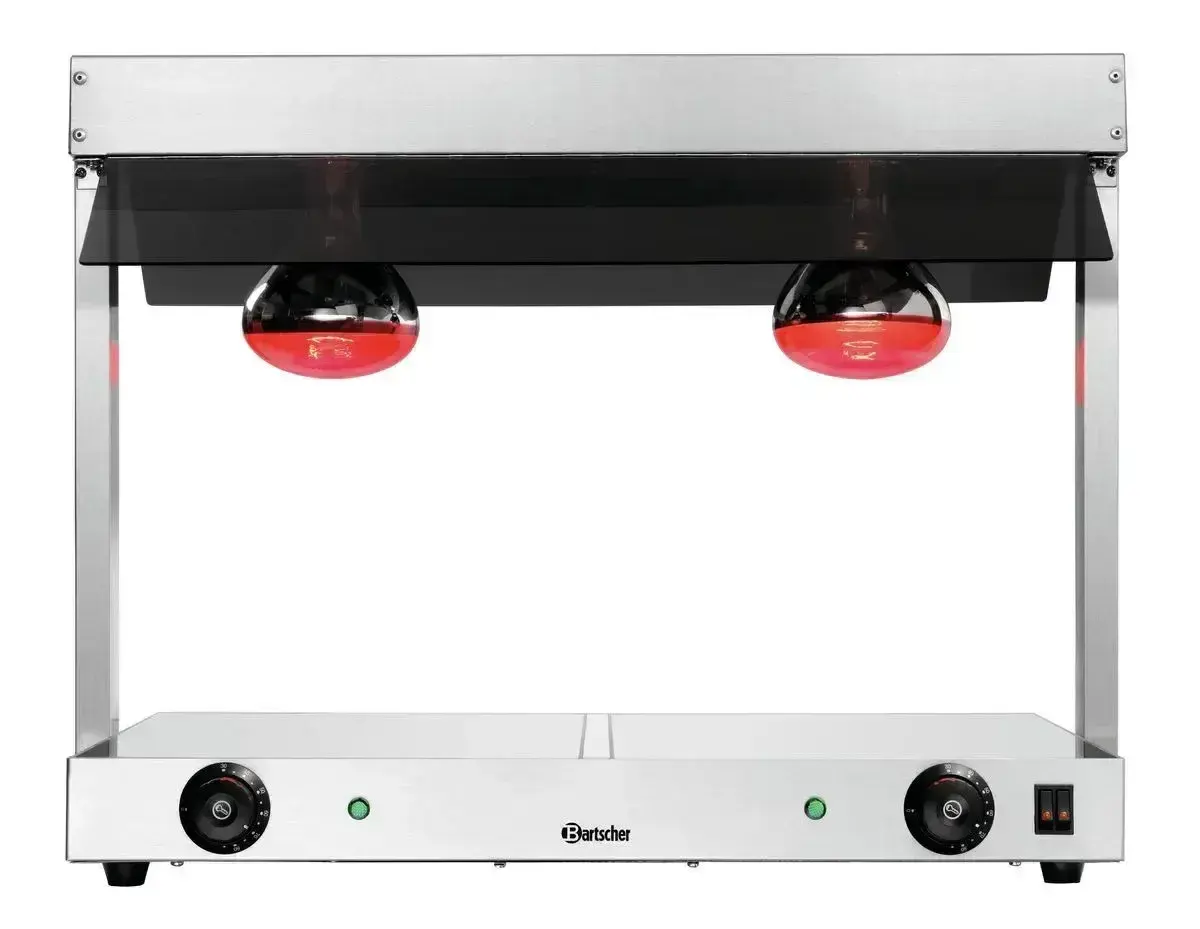

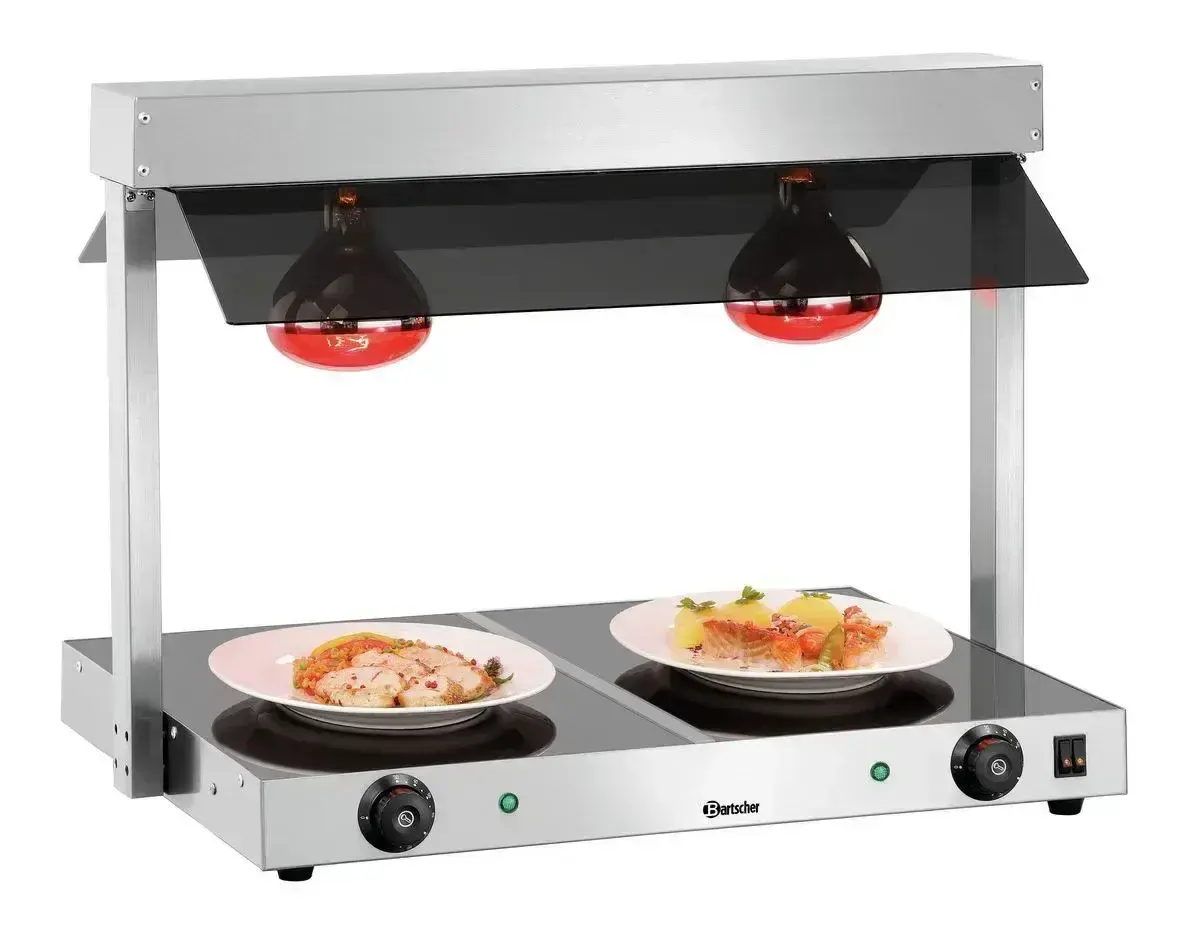

Bartscher I2WL800 Infrared Food Warmer
Price on Request
Contact us for a custom quote
Available for Quotation
The Bartscher I2WL800 combines two separately switchable infrared lamps with separately controlled heating zones.
Equip your commercial kitchen
Request Quote
Get a quotation for your model, quantity and installation requirements.
Before you order
Technical specifications
Check the model, dimensions, capacity and power requirements in the product details. Ask our team to confirm any specification that is not listed.
Delivery & installation
Confirm site access, available space and electrical, water or gas connections before ordering. Delivery, installation and commissioning requirements should be agreed in your quotation.
Warranty & after-sales support
Ask us to confirm the warranty terms, service coverage and spare-parts availability for your selected model. These can vary by product and manufacturer.
Breite warming plate
320 mm
Clear height
300 mm
Colour
Silver
Control lamp
ON/OFF
Product overview
The Bartscher I2WL800 combines two separately switchable infrared lamps with separately controlled heating zones. Its glass-ceramic warming plate is listed for 30–85°C, with a total 0.8 kW, 230 V rating.
Key features and specifications
- Temperature range from: 30 °C
- Temperature range to: 85 °C
- Number of heating zones: 2
- Frequency: 50-60 Hz
- Power: 0.8 kW
- Voltage: 230 V
- Depth: 565 mm
- Height: 570 mm
- Width: 740 mm
Check the specified supply connection and installation dimensions against your site requirements before ordering. Where the manufacturer lists several connection options, confirm the supplied version with Excel Kitchen.
Manufacturer technical information
Selecting the working configuration
Check the supplied layout and the listed 300 mm clear height against actual plates or containers. The source lists two 0.25 kW bulbs and a germ guard, separating it from the I2WL550 kit. Confirm the usable heated areas and pan arrangement using the installation drawing before applying the GN-capable label to a full-size service layout.
Equipment details
Breite warming plate
320 mm
Clear height
300 mm
Colour
Silver
Control lamp
ON/OFF
Delivery state
Permanently mounted
Depth
565 mm
Depth warming plate
530 mm
Design
With warming plate(s)
Equipment connection
Pluggable
Frequency
50-60 Hz
Germ guard
Yes
Heat source type
Infrared lamp(s)
Heat sources can be switched separately
Yes
Heating zones can be controlled separately
Yes
Height
570 mm
Height-adjustable feet
No
Including
2 infrared bulbs (0.25 kW), glass colour: Red
Material
Stainless steel Plexiglas
Number of heat sources
2
Number of heating zones
2
ON/OFF switch
Yes
Power
0.8 kW
Power per heat source
0.25 kW
Surface material warming plate
Glass ceramic
Temperature range from
30 °C
Temperature range to
85 °C
Voltage
230 V
Warming plate GN-capable
2 x 1/1 GN
Weight
14 kg
Width
740 mm
